iBASE

Integrated GNSS Base for Optimal Ease of Use

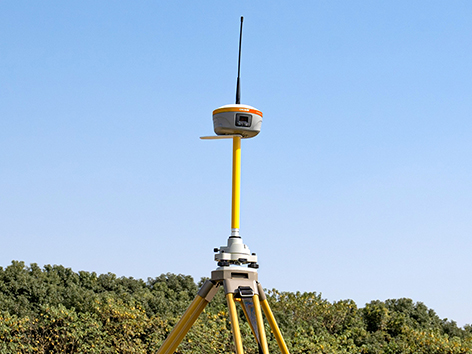

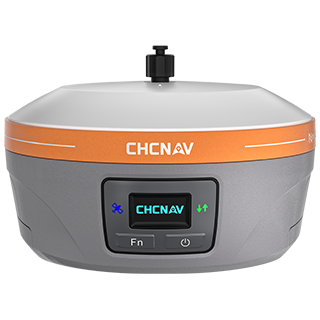

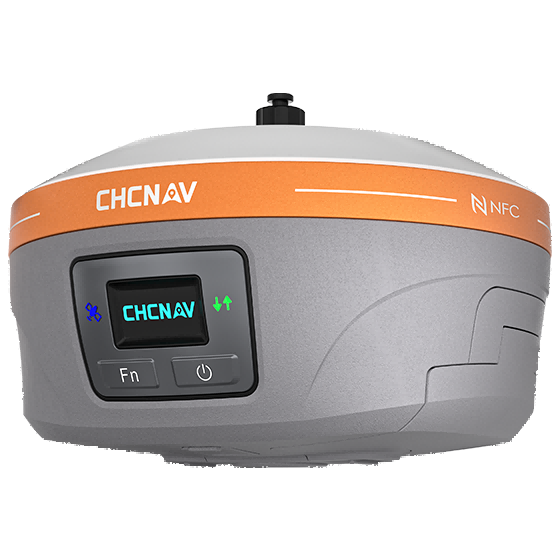

The iBase GNSS receiver is a streamlined base station solution designed to meet the practical needs of surveyors in the field. It delivers performance comparable to a traditional external UHF radio setup—without the added bulk of extra batteries, cables, radios, or antennas.

Featuring a 5-watt radio module, the iBase can provide GNSS RTK coverage of up to 25 km in optimal conditions. Its real-time UHF interference self-checking helps operators select the best frequency channel for reliable performance, improving both ease of use and efficiency. With an integrated AUTO-IMU, it can also function as a capable GNSS rover, adding extra flexibility across a wide range of Australian surveying applications.

Features

Premium GNSS

GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS and PPP for robust signal tracking.

Long-Range

5-watt UHF modem for coverage up to 25 km.

Cable-free

No need for external batteries and cables.

Long Battery Life

Up to 12 hours of continuous operation.

Benefits

Eliminate the need for external batteries and cables with the iBase’s integrated design. Its industrial-grade build meets IP67 standards for dust and water resistance and has an IK08 shock rating for durability.

Ensure superior accuracy with the iBase's 1408-channel GNSS technology. It supports GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS constellations and PPP service, providing dependable RTK corrections and improving survey accuracy and efficiency.

Improve positioning accuracy with advanced multipath mitigation algorithms. The iBase ensures that high-quality GNSS corrections are transmitted to rovers for optimal performance in challenging environments.

Achieve wide field coverage with the iBase’s built-in 5-watt UHF radio module. It provides GNSS RTK coverage up to 25 km under optimal conditions, ensuring uninterrupted data transmission over long distances.

Improve efficiency with the iBase’s real-time UHF interference self-checking capability allowing operators to select the most appropriate frequency channel for optimal performance.

Industry Use Cases

On-site GNSS Station

Construction Surveying

Cadastral Surveying

Product Specifications

Positioning

  • GNSS : Full GNSS
  • Precision max. : 0.8 cm H / 1.5 cm V

Physical

  • Weight : 1.73 kg
  • Dimensions : 160.5 x 103 mm
  • Battery life : Up to 12 hours RTK base

Connectivity

  • Wireless : Bluetooth, Wi-Fi, NFC
  • Cellular : 4G LTE
  • Modem : 410-470 MHz, Rx/Tx
